martec master link

martec
M-1613-10 Master Link

For slinging work.

Features

  • Special alloy steel is used.
  • Used in combination with chain sling and wire sling.
  • Metal fittings for lifting heavy objects.

    • Uses

  • For slinging work

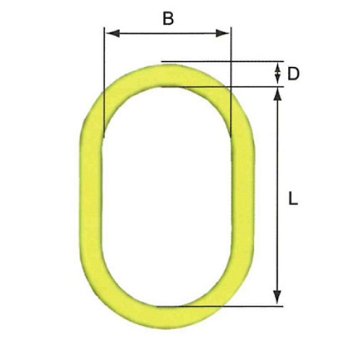

    • Drawing

    martec master link drawing

    Specifications

    Basic working load 10.0t
    Applicable chain wire diameter (Single suspension) 16mm
    Applicable chain wire diameter (2 suspensions) 13mm
    Dimension L 190mm
    Dimension B 110mm
    Dimension D 28mm
    Rupture load 490kN
    Weight 2.8kg
