kanomax 3888 particle counter

kanomax

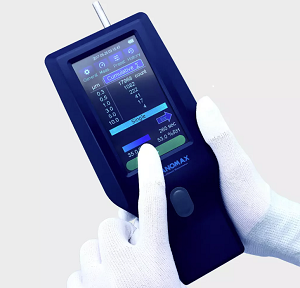

HANDHELD PARTICLE COUNTERS – MODELS 3888

Handheld particle counters for accurate measuring and monitoring

Main Features

  • Large, easy-to-use 4.3" color display with touch panel.
  • The included software allows remote operation from a PC for easy monitoring of changes over time.
  • Available in four languages: Japanese, English, Chinese, and Spanish.
  • Data can be easily retrieved via USB (memory/cable).
  • Model 3888 displays 3 particle sizes simultaneously (0.3, 0.5, 5.0μm) in cf or m3
  • Store up to 10,000 measurements
  • Compact and Light weight

    • Specifications

    Particle Measurement Sizes 3 channels (0.3, 0.5, 5.0μm)
    Flow Rate 0.1CFM (2.83L/min) Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)
    Maximum Measurable Concentration 10% for 2,000,000 particles/CF
    Counting Efficiency 50±20% (for PSL particles near the minimum measurable size) 100±10% (for PSL particles of 1.5 to 2 times as large as the minimum measurable size)
    False Count ≦1 particle/5 minutes
    Size Resolution ≦15% (for PSL particles near 0.3μm)
    Display 4.3 inch color LCD, Resistive touch panel
    Communication Standard USB (Host: for printer and USB flash memory, Device: for PC)
    Power Internal Supply:Li-ion rechargeable battery (Replaceable) External Supply:AC adapter - Input 100 to 240 V Continuous Operation Time:5 hours (Single measurement)
    Operating Environment Main Body:From 10 to 40 ℃, from 0 to 85%RH (With no condensation) Probe:From 0 to 50 ℃, from 2 to 98%RH (With no condensation)
    Dimension W213 X H100 X D55 mm
    Weight 650g
