FX-951 Soldering Iron/Station Type

Compact high-power thermally-controlled soldering iron.

Main Features

  • Standard Soldering Iron for Lead-free Soldering
  • Three types of irons for a variety of soldering work: FM-2028, FM-2026, FM-2032
  • The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.

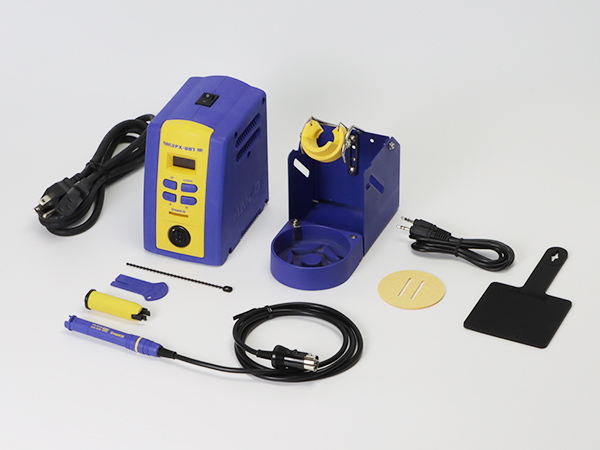

  • Packing list

  • Soldering Iron HAKKO FM-2028
  • Card
  • Power Cord
  • Heat Resistant Pad
  • Iron Holder
  • Connecting Cable
  • Instruction Manual
  • hakko-fx-951


    Model No. FX-951
    Power consumption 75W
    Temperature range 200 to 450℃
    Temperature stability ±5℃ at idle temperature


    Output voltage AC 24V
    Dimensions 80(W)×130(H)×131(D)mm
    Weight 1.2kg

    Soldering Iron

    Power consumption 70W (24V)
    Tip to ground resistance <2Ω
    Tip to ground potential <2mV
    Heating element Composite heater
    Cord length 1.2m
    Total length 188mm (with 2.4D tip)
    Weight (*Weight is measured without cord.) 30g (with 2.4D tip)
