- Ultra-high accuracy of the world's highest level
Radial direction rotation accuracy (0.01+3H/10000) μm Axis direction rotation accuracy (0.02+3R/10000) μm
- Newly developped driving and Guiding mechanism (Patend pending)
RONDCOM CREST is featured by newly developed mechanisms mounted on the Z axis of the column and the R axis of the drive unit, representing the essence of the tradition and technology of Tokyo Seimitsu.

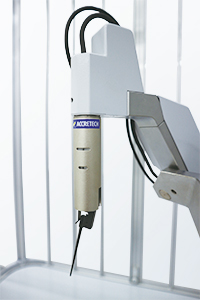

- Equipped with newly developed measuring force control detector realizing automatic switching between roundness measurement and roughness measurement
Newly developed measuring force control detector is equipped to RONDCOM CREST.
- Ultra-high accuracy diameter measurement enabled only by RONDCOM CREST. Surpassing the previous machines by the repeatability of 0.3 μm
RONDCOM CREST demonstrates ultra-high accuracy not only in the measurement of roundness and cylindricity.
