Introduction

This new product is about 35% lower consumption compaered with previous model and available for Active Heat Control™

Details:

• About 35% lower consumption during the operation.
• High power CW laser implements smooth surface of welding.
• Available for Active Heat Control with dedicated focusing head. It enables to control the heat in processing area precisely.
• Suitable for processing in automotive parts and machine parts that need high quality and high precise welding.

Features

• Improved brightness---Oscillation module is optimised and brightness is improved compared with previous model.

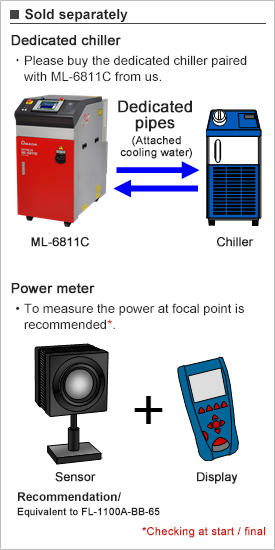

• Dedicated chiller---The pairing with a dedicated chiller is needed to show its maximum ability.Please use chiller that our company provides.The chiller is delivered with it's water piping, thus a customer doesn't need to prepare it.
• Laser power management---Managing laser power in focal point with power meter (opotion), contributes to improvement of product quality.
• Active Heat Control™---Changing laser output by heat detection on axis, controls the heat input into processing area precisely.Suitable for welding, hardening and other application that heat control is important.The dedicated focusing head (option) and the dedicated specification of ML-6810C (Option) are needed.
• Scanning system---Employing the Galvo, implements high speed and high efficiency processing.Enables to show its superior brightness according to dedicated optical component.
• Reflection resistant structure---Equips a structure to restrain the reflection from workpiece, according to original optical design.Enables vertical emission, according to the structure which is less effect of reflection from workpiece.
• Controlling function---Enables to set up various wave, according to the function.Implements various way from high speed precise welding to cutting, according to modulation function. (frequency and waveform)
• Saving energy and space---Reduces energy consumption compared with previous machine, according to design optimization.Ensures wider space to set up machines, according to light and compact design.
• Useful user interface---Large LCD touchscreen allows to input setteings easily.Available for Japanese and English.Enables to use an extension calble.
